High Productivity Corrugated Pvc Pipe Production Line Pvc Plastic Pipe Making Machinery with Inverter ABB

plastic processed : PVC

application : PIPE, Profile, Plates

Screw Design : Single-screw

Screw Material : 38CrMoALA

screw diameter (mm) : 65 mm

screw l/d ratio : 30:1

Screw Speed (rpm) : 60 rpm

place of origin : Shandong, China

brand name : DEERMA

voltage : 380V 3Phase 50HZ or as your demand

dimension(l*w*h) : L12*W2*H2.5m

power (kw) : 35

warranty : 1 Year

key selling points : High Productivity

video outgoing-inspection : Provided

core components : Bearing, Pump, Gear, Engine

machinery test report : Provided

Extrusion Machine : corrugated pvc pipe production line pvc plastic pipe making machinery

Output Capacity : 80-100 kg/ hr

PVC Corrugated Pipe : (12mm,16mm,20mm,25mm,32mm,40mm,50mm)

Installed power : 35kw

Actual Consumption power : About 25kw

Motor : SIEMENS

Inverter : ABB

Temperature meter : OMRON

Contactor : SCHNEIDER

production speed : 8-15m/min

Condition : New

Showroom Location : Egypt, Peru, India, Russia, Thailand, Kenya, South Korea, Romania, South Africa

Applicable Industries : hotels, Building Material Shops, Restaurant, Home Use, Food Shop

Warranty of core components : 1 Year

Weight : 6 KG

Price : CN¥180,375.00/sets >=1 sets

Contact Now

corrugated pvc pipe production line pvc plastic pipe making machinery

Product Description

PP PE PVC electrical wire corrugated pipe making machine

Max line speed 30 meters per minute.

PVC plasticcorrugated pipe machines is made of super quality steel. The module connection is set in the closed machine cavity. The inner and outer side of corrugated pipe is even and smooth.

The forced cooling system can enhance the quality and capacity of product. Corrugated pipes are widely used for wire sleeves, auto, home and medical appliances.

Technial parameters:

Pipe diameter(mm)	4.5-9	9-32	16-50
Extruder model	SJ-30	SJ-50	SJ-65
Screw L/D	30:1	30:1	30:1
Output kg/h	10	30	50
Extruder motor	4	15	18.5
Corrugators power kw	1.1	1.5	2.2
Moulds pairs	42	38,50	50
Cooling mode	Water Cooling and fan cooling
Extruding speed(m/min )	6-10	8-12	8-12
Account number mode	Inducting speed
Winding pipe mode	Automatic winding and manually

Main mahine list

1.SJ-30/50/65 Single Screw Extruder

2.Forming machine

3.Double station winder

4.Vacuum loading device

5.One set mould

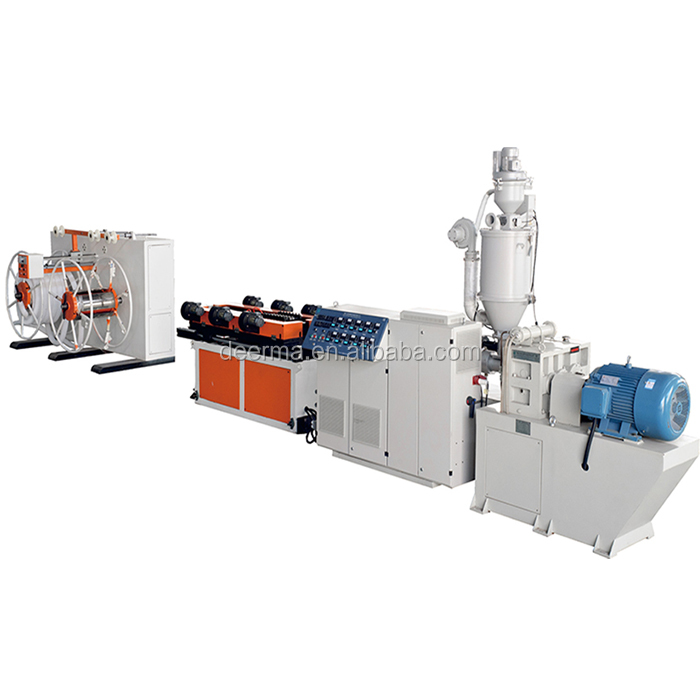

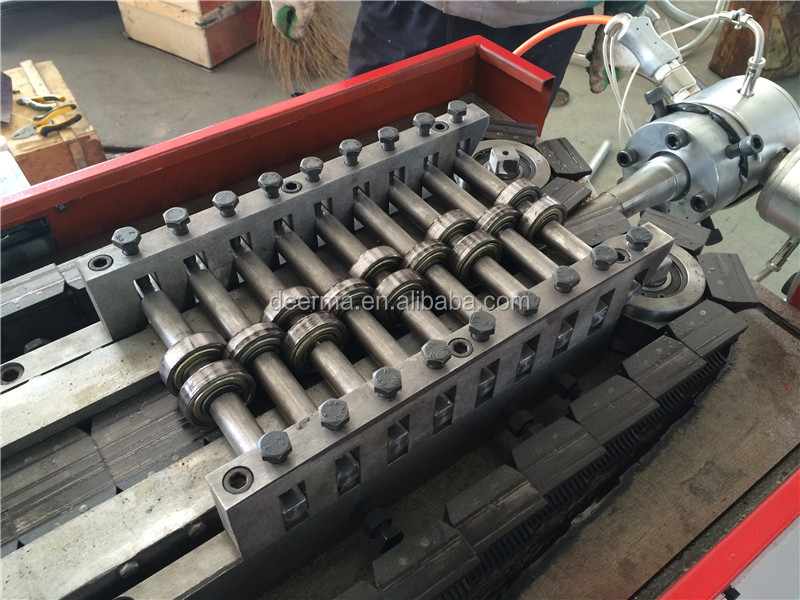

Machine Pictures

Output products:
